Suspension Service & Tuning

Suspension tuning is not about making a vehicle higher or stiffer.It is about controlling energy.

When a vehicle moves across dunes, it generates vertical load transfer, shaft velocity spikes, oil temperature rise, and spring oscillation cycles. If damping is not calibrated correctly, the vehicle becomes unstable, unpredictable, or unsafe at speed.

At 4WK, suspension tuning is approached as a mechanical system:

Spring rate
Compression damping curve
Rebound damping timing
Oil flow restriction
Heat management
Vehicle weight distribution

Every change inside a shock absorber alters how the vehicle behaves on sand.

We treat each shock absorber as an independent mechanical case.

Stage 4 Controlled Adjustment

Stage 4 is designed for drivers who want to refine the behavior of their existing setup.

This stage focuses on recalibrating damping characteristics to correct issues such as:

Excessive softness causing float
Overly stiff compression causing harshness
Rear-end kick on pickups
Unbalanced rebound timing

Internal adjustments are made to improve control in moderate-speed dune driving without significantly altering ride comfort.

The goal is controlled improvement, not transformation.

Stage 5 Balanced Performance Engineering

Stage 5 is the most common configuration because it establishes a proper balance between desert capability and road usability.

At this level, the work goes beyond simple revalving.

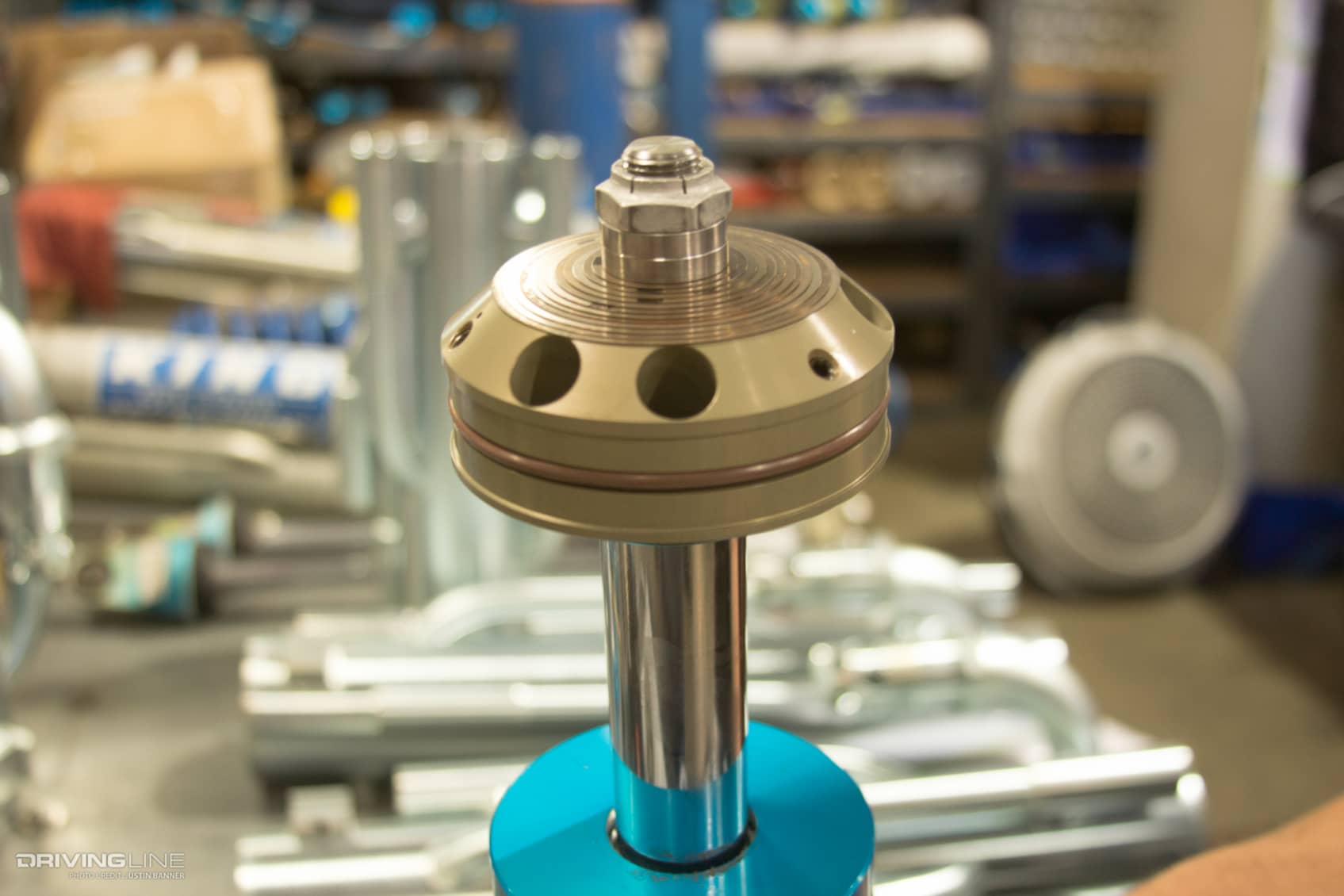

We reconfigure shim stacks, adjust piston flow characteristics, and recalibrate rebound to match:

Vehicle weight
Tire size
Intended dune speed
Driving style

The result is improved stability during cresting, reduced bottom-out events, and better chassis composure during fast directional changes, while maintaining usable on-road comfort.

Stage 5 is where suspension begins behaving predictably under load.

Stage 6 High-Speed Desert Calibration

Stage 6 is developed for high-speed dune driving where shaft velocities are significantly higher and heat generation becomes a major factor.

At this stage, internal modifications may include:

Advanced shim reconfiguration

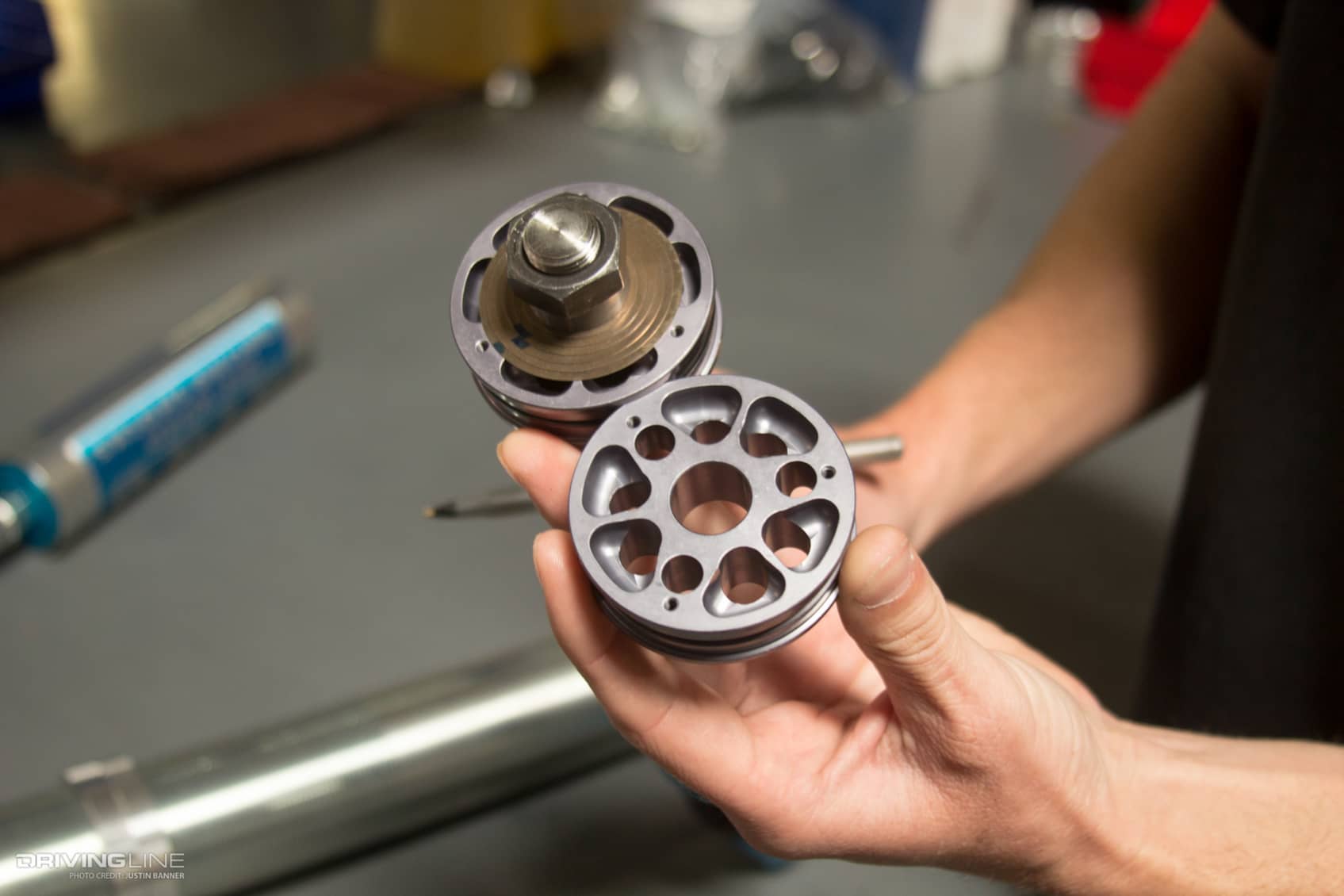

Piston modifications
Shaft upgrades where required
Reservoir pressure recalibration
Aggressive rebound timing control

The focus is high-speed stability, controlled landings, and resistance to fade under sustained desert runs.

This level demands driver skill. The margin for error becomes smaller, and suspension response becomes sharper and more immediate.

Stage 6+ Extreme Application Engineering

Stage 6+ is reserved for specialized builds.

This is not a predefined package. It is a full internal re-engineering process based on vehicle application and driver behavior.

Work may include custom internal component machining, adjuster modification, reservoir system changes, and heat management refinement.

At this level, the suspension is calibrated for extreme desert speeds and high mechanical stress environments.

It is not necessary for most drivers.

Service is not optional, it is part of the system

Suspension Service & Rebuild

Performance suspension requires periodic service due to heat cycles, seal wear, and oil degradation, especially in UAE desert conditions.

Our service process includes full disassembly, inspection, seal replacement using original components, correct oil specification, nitrogen recharge, and reassembly with precise calibration.

We do not perform batch servicing.

Each shock is inspected individually for shaft condition, piston wear, seal integrity, and oil contamination.

High-performance suspension without maintenance leads to fade, cavitation, and inconsistent damping response.
