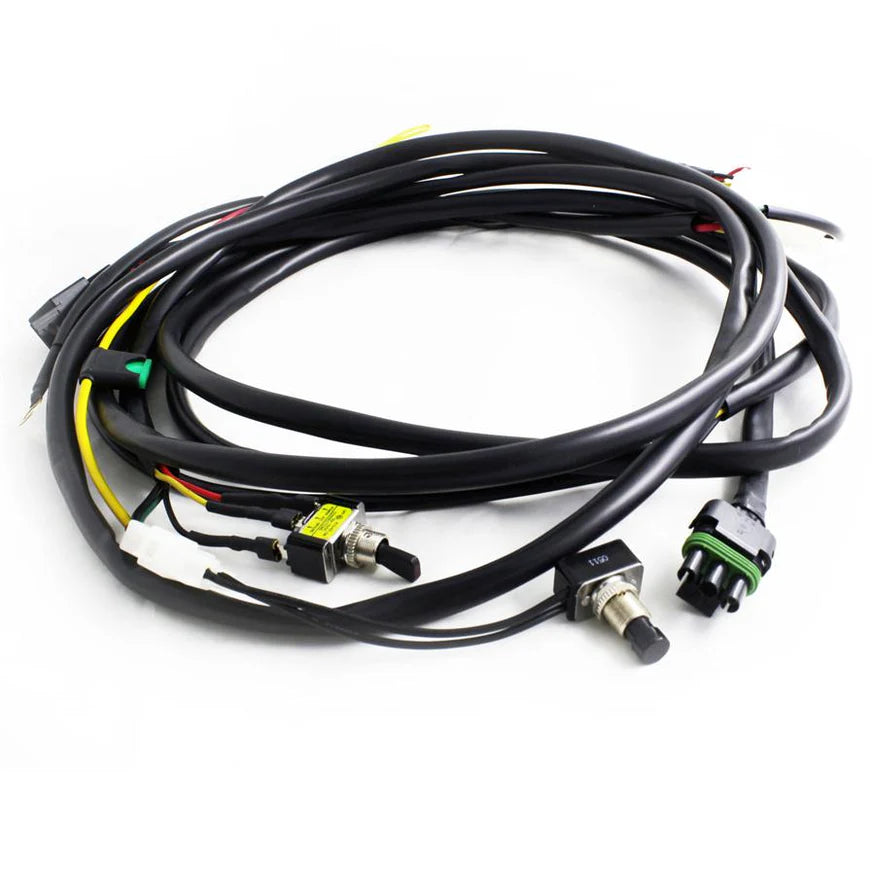

Baja Designs, OnX6+ / XL Series Hi-Low Wiring Harness, Universal Fit

Baja Designs Hi-Low Racing Wiring Harness with Dim Mode

Take the guesswork out of your high-output lighting installation with this professional-grade Hi-Low Wiring Harness. Engineered to meet the rigorous demands of off-road racing, this heavy-duty harness is designed specifically for the OnX6+ (up to 50") and XL Series (Pro & Sport) LED lights. This is the ultimate "no-fail" electrical backbone, offering maximum versatility by allowing you to operate your lights via the included cockpit toggle switch or by tapping into your vehicle’s factory high-beam trigger for seamless integration.

Unlike standard harnesses, this race-spec kit features Dual-Mode Functionality with a dedicated toggle button for "Dim Mode." This allows you to drop the intensity of your high-output LEDs for varying trail conditions or dust-heavy environments. Constructed with heavy-duty wire gauges and protective sheathing, the harness provides a massive 100 inches of reach, making it ideal for both bumper and roof-mounted configurations. With an included Y-splitter, this kit is ready to power up to two XL pods or a single large OnX6+ bar right out of the box.

Features

• Dual-Mode Operation: Offers the flexibility to use the included cockpit toggle switch or a high-beam trigger to activate your lighting system.
• Integrated Dimming Control: Features a specialized secondary button to activate "Dim Mode," providing essential brightness adjustment for different environments.
• Race-Grade Durability: Built with heavy-duty wire gauges and abrasion-resistant sheathing to withstand extreme heat, vibration, and moisture.
• Extended 100-Inch Reach: Generous wiring length between the battery terminals and the Weatherpack connector suits everything from low-profile bumpers to roof racks.
• Complete Two-Light Support: Includes a high-quality wiring splitter, allowing you to power two XL Pro/Sport pods or OnX6+ lights (up to 50") simultaneously.
• Professional Safety Components: Fully equipped with a heavy-duty relay, inline fuse, and high-conductivity battery ring terminals for total circuit protection.
• Weather-Tight Connectivity: Utilizes premium Weatherpack connectors to ensure a secure, waterproof seal that won't fail on the trail.

Spec

• Brand: Baja Designs
• Application: OnX6+ (up to 50"), XL Pro, and XL Sport Models
• Light Capacity: Supports up to 2 lights (includes splitter)
• Wire Length: 100 Inches (Battery to Weatherpack)
• Switch Type: On/Off Toggle + Separate Mode/Dim Button
• Circuit Protection: Integrated Relay and Fuse
• Product Type: High-Performance Racing Wiring Harness
